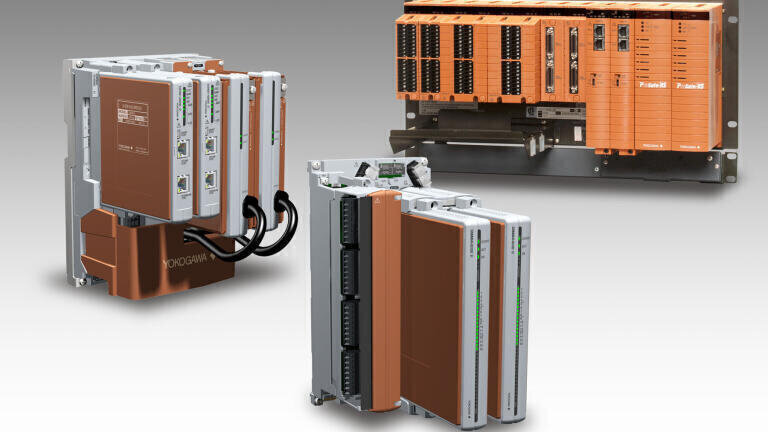

Enhanced Safety Instrumented System Easy adoption and use as a fire and gas system

Yokogawa Electric Corporation announces that it will release an enhanced version of the ProSafe®-RS safety instrumented system on April 26. This latest release, R4.03.00, includes an improved engineering function for configuring fire and gas systems (FGS) and new operation faceplates for the FGS operation and monitoring screens. These enhancements make it easier to adopt and use ProSafe-RS in FGS applications.

Development Background

In the oil, natural gas, petrochemical, chemical, and other energy and basic materials industries, various safety measures must be taken to prevent accidents and protect the environment. This includes the use of a safety instrumented system, which can secure plant safety by functioning as an emergency shutdown system (ESD) that detects abnormal conditions and safely initiates emergency shutdowns, and by functioning as an FGS.

Yokogawa’s ProSafe-RS safety instrumented system can be integrated with the CENTUM VP integrated production control system and is widely used mainly in ESD applications all over the world. Based on an April 2017 Yokogawa survey, ProSafe-RS is one of the top selling safety instrumented systems on the market today. Since releasing this system in 2005, Yokogawa has continued to strengthen its functions to satisfy a variety of customer needs. In response to the rising need for FGS solutions, this latest release includes features that make it easier to adopt and use this system in such applications. And by adding a new input/output (I/O) module and enabling the use of an alternate control network topology, we are giving our customers a greater range of choices in their ESD and FGS applications. Cybersecurity has also been strengthened.

Enhancements

1. Easier adoption and use in FGS applications

Software components (function blocks) that define the operations and functions to be performed when smoke, heat, and/or gas is detected, an essential aspect of any FGS application, have been added to the ProSafe-RS engineering functions. Standard FGS faceplates have been added for the integrated display of smoke, heat, and gas detector information such as gas concentration level and device status. In addition, the I/O module has a new function that can reset the detector that sends smoke and heat detection signals to the ProSafe-RS system. This eliminates the need for a reset circuit to restore communications after an abnormality is detected, thus reducing both the size of the hardware and its initial cost. With these enhancements, the ProSafe-RS is easier to adopt and use in FGS applications.

2. New I/O module

Yokogawa provides an N-IO (Network-IO) I/O device with channels that can be configured by software to handle either analog or digital signals. As most safety instrumented systems rely mainly on digital I/O signals, the company has added a new I/O module to its lineup that is used for only the input or output of digital signals. This new module reduces the total cost of ownership for users.

3. Ring network topology

For the Vnet/IP® real-time control bus, ProSafe-RS has relied on the star network topology, in which all devices are connected to a central hub. Vnet/IP is a control network developed by Yokogawa that features high reliability and quick response. Vnet/IP complies with the IEC61784-2 international standard. The new ProSafe-RS is also compatible with the ring topology, in which devices are connected to each other in the shape of a ring. This feature affords our customers greater flexibility when configuring their systems.

4. Improved cybersecurity

As a result of enhancements made to the ProSafe-RS engineering station’s software security functions and changes to the Windows® security settings, users can now set their systems to a higher security level. This latest ProSafe-RS release also supports a Windows function that enables the centralised management of security settings. With this feature, users can apply the same security settings to multiple monitoring and operation PCs, thus greatly improving plant security.

Major Target Markets and Applications

For use in emergency shutdown systems (ESD), burner management systems (BMS), and fire and gas systems (FGS) in process industries such as oil, natural gas, petrochemicals, chemicals, pharmaceuticals, electric power, and iron and steel

About ProSafe-RS

Released in February 2005, the ProSafe-RS safety instrumented system helps prevent accidents by detecting abnormal conditions in plant operations and initiating emergency actions such as a plant shutdown. An independent certification body has certified that ProSafe-RS conforms to the IEC61508 international safety standard and can be used in SIL3applications. Established by the IEC, a safety integrity level (SIL) indicates the relative level of risk provided by a safety function. SILs 1 through 4 are defined by IEC 61508. At SIL3, the risk factor for a plant where safety measures are not in place is in a range between 1/1,000 and 1/10,000. At SIL4, the risk factor is in a range between 1/10,000 and 1/100,000. Unlike conventional safety instrumented systems and distributed control systems, which are regarded as having different roles and functions and operate separately, the operation of ProSafe-RS and the CENTUM integrated control system can be fully integrated. ProSafe-RS is highly regarded by users and has been installed in more than 2,100 projects worldwide (as of April 2017).
