Flashpoint analyser offers safety, reliability and accuracy

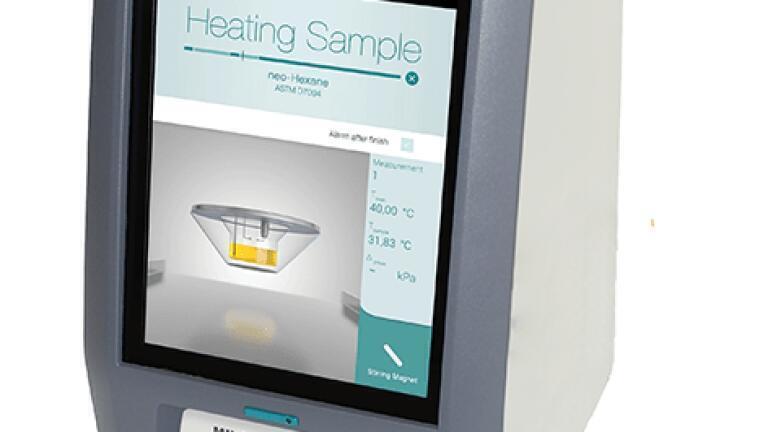

The MINIFLASH FP Vision, from Grabner, determines the flash point of flammable liquid mixtures according to ASTM D6450 and D7094. These test methods are continuously closed-cup and are the safest for flash point testing and results are rated equivalent to ASTM D93/ISO 2719 Pensky-Martens. Grabner’s flash point analysers are approved by the US Department of Transportation, RCRA, US Navy and NATO.

The MINIFLASH FP Vision determines flash points between -25°C and 120°C (-13°F to 248°F). The high temperature version of the instrument, the MINIFLASH FPH Vision, determines flash points between 10°C and 400°C (50°F to 752°F). The advanced Peltier technology, used in the instruments, allows for fastest cooling cycles and sample turnaround. It also extends instrument life by ensuring optimal thermoelectrical regulation.

The new flash point testers feature several technical improvements, such as including the test method IP 620 and an automatic sample loading and ejection system. The automatic sample loading and ejection system reduces the chance of accidental spillage and ensures maximum safety during flash point determination.

The automatic ignition cleaning MINIFLASH FP Vision and MINIFLASH FPH Vision are fully compatible with COCKPIT Software for Vision analysers. Offered under a premium licensing, COCKPIT Software for Vision analyzers expands the capabilities of Grabner analysers. With the premium COCKPIT SQC version, for example, laboratories can introduce quality assurance programs in full compliance with ASTM D6299.
