New hybrid laser process gas analyser reduces costs for continuous emissions monitoring

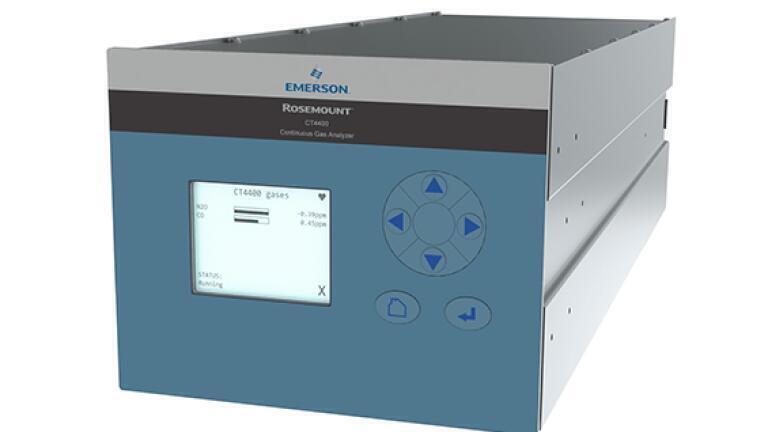

In the midst of increasing compliance demands for emissions monitoring and nitrogen oxide (NOx) measurement in industrial applications, companies now have the opportunity to move beyond costly consumables and complex gas sample treatment associated with aging, legacy measurement systems. Emerson’s new Rosemount™ CT4400 Continuous Gas Analyser is the world’s first purpose-built Quantum Cascade Laser (QCL) and Tunable Diode Laser (TDL) analyser designed to help plants reduce ownership costs and report emissions accurately in environmental monitoring applications measuring standard components, such as nitric oxide (NO), nitrogen dioxide (NO2), sulphur dioxide (SO2), carbon monoxide (CO), carbon dioxide (CO2), and oxygen (O2).

Optimised for cold and dry applications running at ambient pressure, the Rosemount CT4400 analyser offers the benefits of QCL/TDL technology, including high sensitivity, accuracy, improved stability, and low-drift performance in a configuration that allows fast, easy integration into existing plant infrastructure.

“Our customers are looking for a better way to measure emissions without the ongoing high costs or need for frequent calibration and complex sample preparation that requires NOx converters or ozone generators,” said Paul Miller, managing director for Rosemount Quantum Cascade laser analysers, Emerson Automation Solutions. “The Rosemount CT4400 Continuous Gas Analyser gives them an answer to their exact requirements in a configuration they can just plug into their existing systems and be off and running – at a lower cost than previously possible. The reduced complexity of the system over what most companies are used to results in higher reliability and analyser availability with a lot less personnel time required.”

Because the system can hold up to four laser modules, it can measure up to seven application-specific gas components simultaneously, providing great flexibility in continuous emissions monitoring systems (CEMS) applications. This simultaneous, multi-component analysis within a single analyzer reduces the need for multiple analyzers, and thus the cost.

At the heart of the Rosemount CT4400 is Emerson’s QCL technology, which detects gas molecules in both the near- and mid-infrared wavelength range. The system employs a patented laser chirp technique that enables detection of individual gas species, free from the cross-interference effects of other gas components in the stream, making the measurement highly accurate and stable down to sub ppm concentrations. This high performance ensures operators meet increasingly demanding regulatory requirements, while real-time reporting provides critical insight into process performance.

Due to its purpose-built design, which produces enhanced performance at a lower cost, the Rosemount CT4400 Continuous Gas Analyser ensures reliable detection and monitoring of gases and allows operators to avoid costly regulatory fines or unexpected shutdowns.
