Speed up your asphalt/bitumen analysis
Aug 15 2018

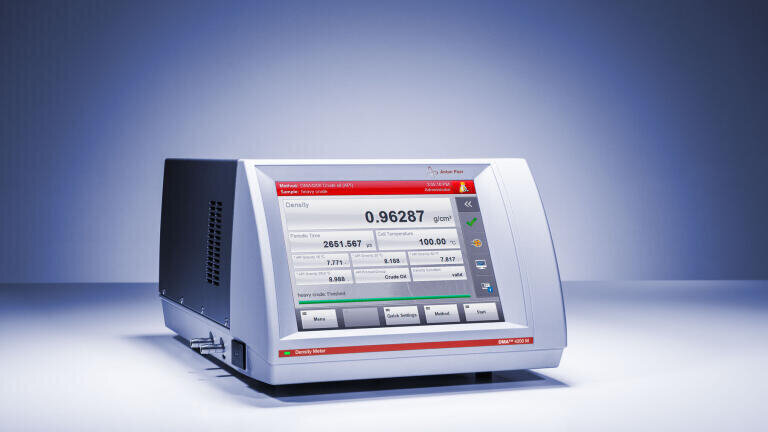

The DMA™ 4200 M density meter from Anton Paar improves, accelerates, and simplifies density measurements of:
- bitumen/asphalt
- crude oil
- fuels
- liquid petroleum gas (LPG)
- and other heavy petroleum products.
DMA™ 4200 M measures the density at temperatures up to 200°C and elevated pressures up to 500 bar. For asphalt/bitumen measurements, DMA™ 4200 M delivers results significantly quicker than pycnometers or hydrometers. It also requires only small amounts of sample and cleaning solvent.
DMA™ 4200 M: The density meter for exceptional conditions
- 10 times faster asphalt/bitumen measurements than with pycnometers or hydrometers
- Density measurements at up to 200ºC and 500 bar
- FillingCheck™ for bubblefree filling and compliance with ASTM D4052 and ASTM D5002
- New viscosity correction method for accuracy of up to 0.0002 g/cm³
- Temperfect™ feature allows immediate density measurements at any temperature between 0°C and 150°C at ambient pressure
- Syringe heating accessory for easy filling
- Gesture control for clean operation
- LPG adapter for easy LPG filling.
Easy filling and fast cleaning of heavy samples
The constant temperature control from the syringe to the inlet and outlet of DMA™ 4200 M ensures highly fluid bitumen/asphalt or residual fuel oil during the filling procedure. The rapid cleaning procedure will save you valuable time: Calculate one minute of cleaning and one minute for drying and you are ready for the next measurement.
Patented method
DMA™ 4200 M applies the patented new Repeated Fade-out Method and provides endurance at high temperatures and pressures. The patented Repeated Fade-out Method delivers the most stable density results based on comprehensive knowledge of the oscillation characteristics. These and other unique features make DMA™ 4200 M a must-have tool for QC and research labs.
Please click here for more information.
Contact Anton Paar for a demo now!
