ATEX/IECEx Heads with Cyber Electronics and Sensor
Aug 10 2015

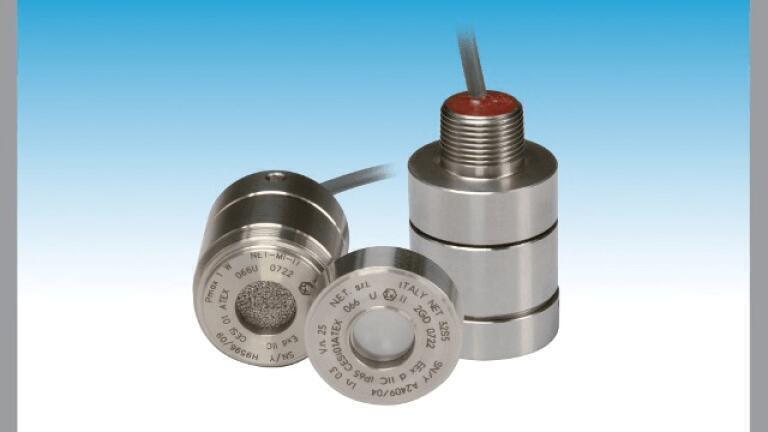

The NET3 Cyber Head, from N.E.T. is a stainless steel enclosure that has been developed and ATEX/IECEx certified for use as a component of a fixed flammable gas detection system or as a full conformity field device. It comprises a stainless steel flameproof enclosure constructed with an integral stainless steel sinter filter guaranteeing safe entry of the atmosphere being detected (2G protection).
Combustible dust and IP protection available on request using separate adapter (2GD protection). The enclosure is available also in aluminium if requested.
The NET3 model is decomposable and the sensor can be replaced at the end of its life time. The enclosure is fitted with an external thread at the front end to allow easy fitting of accessories. A choice of standard rear mounting threads is available.
Main features are: 4-20 mA output for analogue systems, RS485 (Modbus) for digital addressable systems, Signal outputs for fault and supply for external keypad, Compatible with NET IR, EC and pellistor sensors, Supplied complete with a sensor configured and pre-calibrated. Special ranges supplied on request, Simple in-field calibration, Full software support available, and ATEX or IECEx certified stainless steel or aluminium flameproof Ex d enclosure.
