New Duracator Conservation Vent

May 01 2014

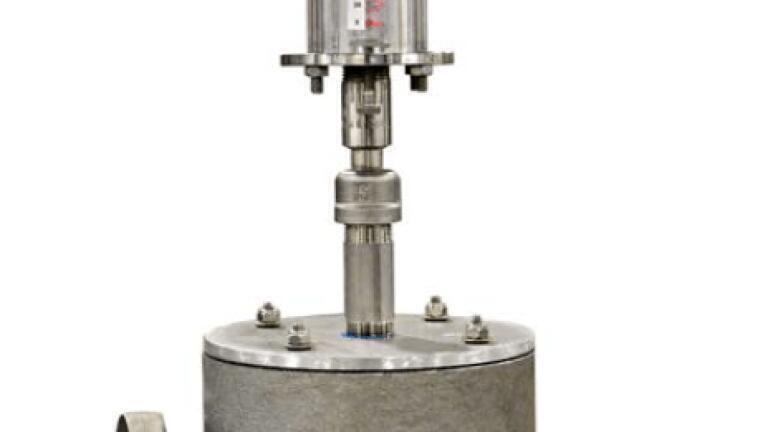

Shand & Jurs (USA) has introduced the new 99060 Duracator to their line of Conservation Vent Accessories.
The 99060 Duracator is a visual pallet lift indication device for conservations vents and allows plant personnel to visually detect the percentage of pallet lift that has occurred.

The Duracator is fastened to the top of a conservation vent pressure cover or hood. The 99060 utilises a modified pallet stem to engage a magnet which causes the flipping of magnetic indicators as the pallet stem rises when there is a release of product vapour. As it rises, the magnetic indicators will flip from 0%, 25%, 50% and finally 100% pallet lift.

The 99060 Duracator features two modes of operation: Memory Mode and Following Mode. In Memory Mode, the maximum percentage of pallet lift will remain displayed on the device until it is reset with a special resetting magnet. In Following Mode, the Duracator’s indicator will follow the position of the pallet and return to zero when the pallet closes.

The 99060 Duracator is available in two sizes: one for conservation vents in 2”-6” sizes and the other for conservation vents in 8”-12” sizes.
