Measurement and Testing
Differences in Control
Dec 15 2012

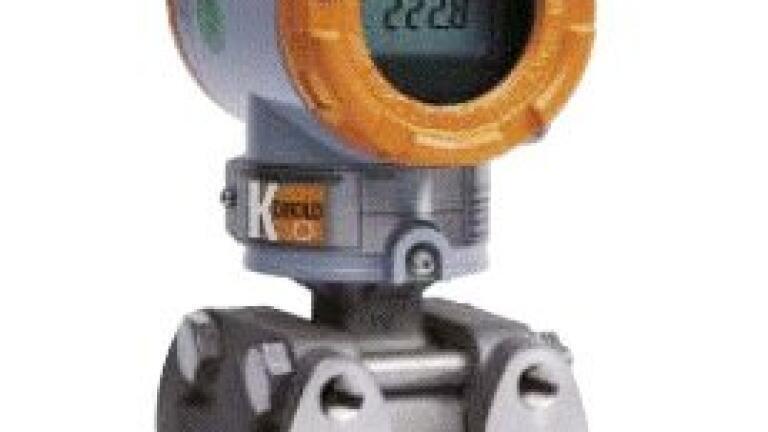

High flexibility and reliability are the important characteristics of the PAD differential pressure transducer made by automation specialists KOBOLD Messring GmbH (Germany). This reliable measuring instrument is just as suited to recording absolute and differential pressure as it is to measuring filling levels and flow rates. A multitude of measuring ranges from –1 to over 400 bar and the overpressure models up to 800 bar provide solutions for a wide range of applications.
Tried-and-tested capacitive or piezoresistive sensors ensure high reference accuracy of within ±0.075% of the calibrated measuring range as well as long-term stability. The membrane, which comes into contact with the media during the process, is made of proven, hard-wearing materials (stainless steel, Hastelloy C, tantalum, or Monel) and can withstand process temperatures of up to 120°C. Special multi-level connecting flanges make it possible to install the pressure transducer vertically without separate fitting pieces or different mounting plates. The protection class is IP 67. ATEX approval will soon be available.
The measuring process is monitored and evaluated using a high-quality microprocessor. This includes the automatic compensation of ambient temperature and process variables, sensor calibration and zero-point adjustment, filtering and damping, continual self-diagnosis and adjustment, as well as data transfer and LCD display. The analogue and frequency output relays the measurement values. Operation and integration in automation systems can also take place using the HART protocol.
