Measurement and Testing
Fully Computer Controlled Distillation System according to ASTM D-2892
Jan 26 2013

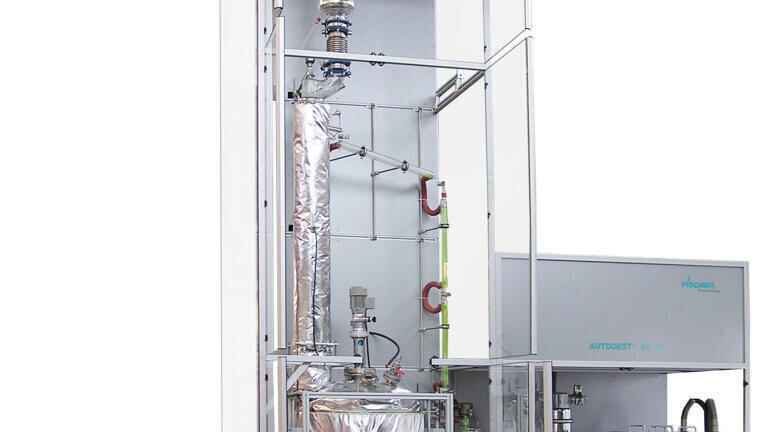

The i-Fischer (Germany) DIST D-2892 CC / FISCHER AUTODEST 800 AC is a fully computer controlled unit of turn-key design, and ready for immediate use after installation and commissioning. The system is fully housed and equipped with doors in the front and rear to satisfy safety requirements and to facilitate service aspects.
The automatic fraction collector with 20 receivers includes a built-in internal balance for the determination of the fraction weight, while the separate volume follower system is used for discharging the fractions into the final receivers and the determination of the fraction volume as well as for the direct distillation rate control.
The vacuum equipment and the control system are designed for highest accuracy, repeatability and reproducibility of data.
Also available are i-Fischer DIST D-2892 CC fully automated computerised distillation systems according to ASTM D-2892 equipped with a re-boiler capacity of 100 ltr, 150 ltr, 250 ltr, 500 ltr and more.
