ERAFLASH and ERAFLASH S10TM Cooling Lid – Unmatched Performance With Maximum Safety

The aim of flash point testing is to determine at what temperature the vapors above a liquid are flammable. With eralytics ERAFLASH flash point testing was never safer and easier.

ERAFLASH uses the innovative CCCFP – Continuously Closed Cup Flash Point Method ASTM D6450 and D7094 with only 1-2 mL of sample volume. Due to the closed chamber during the whole measurement process the measurement is intrinsically safe with no open flame.

An ASTM inter laboratory study showed no statistical bias of ASTM D7094 to ASTM D93 (Pensky Martens, EN ISO 2719). There are further correlation methods for ISO-Standards ISO 13736, EN ISO 3679, EN ISO 3680.

Another great benefit is the patented PBT – Peltier Boost TechnologyTM which allows fastest heating and cooling rates. With only one single device this innovative technology supports an unprecedented temperature range and allows significantly shorter turnaround times than all other flash point testers on the market.

Depending in what industry you are in with ERAFLASH you can measure a high number of different sample types from fuels, lube oils, paints, varnishes, solvents and many more. Another great plus when it comes to cost-savings is the necessary small sample volume which is ideal for more expensive samples like flavors & fragrances or cosmetics.

To meet all customer requirements the ERAFLASH family consists of various instrument models:

· ERAFLASH is our standard model used for standard fuel and lube oil testing.

· ERAFLASH LT Low Temperature is mainly used for pure chemicals and very low temperature measurements (Temperature range -40 to 120°C)

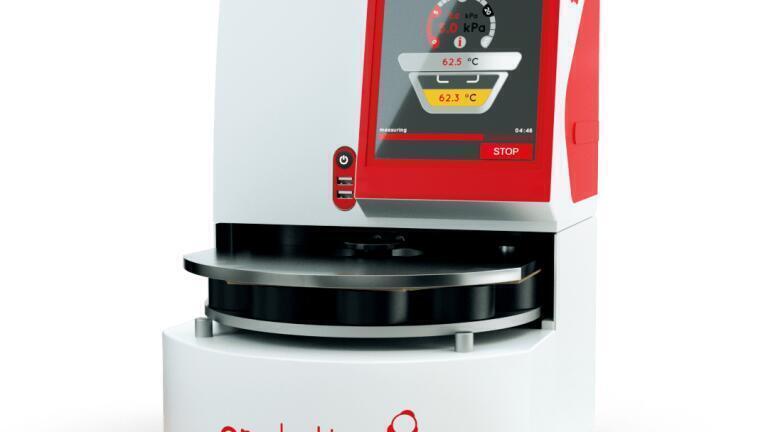

· ERAFLASH S10 offers safest measurement with a 10-position autosampler.

The latest innovation for the ERAFLASH S10 is a new Cooling lid. This Cooling lid will further slowdown the evaporation process ensuring unaltered samples from charging the auto sampler to the actual measurement. ERAFLASH S10 can now be equipped with such a water-cooled lid that keeps the sample cups cold prior the measurement.

In combination with its unrivaled temperature range of -25 to 420 °C (-13 to 788 °F) ERAFLASH is a very cost-efficient tool for the flavors and fragrances industry all the way to big used oil testing facilities.

Altogether eralytics offers the perfect match for every customer requirement.
