Flow Level Pressure
DNV- and GOSSTANDART-Certified Pressure Gauge
Jun 02 2016

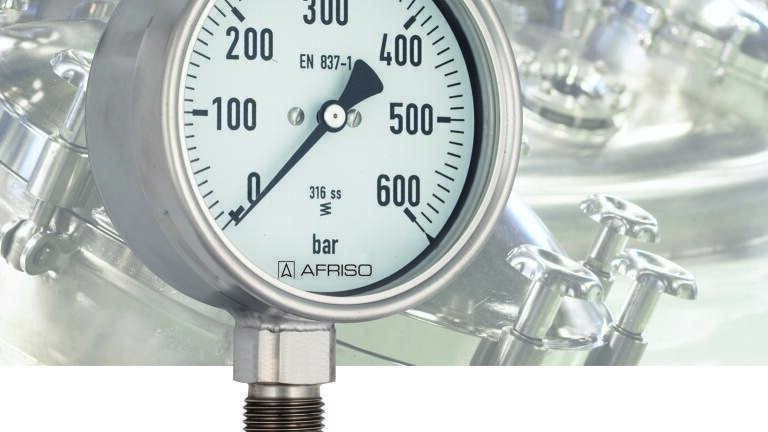

The AFRISO (Germany) NS 100 (NS 160) is used to measure the pressure of gaseous and liquid media at temperatures of up to 150 °C in the measuring ranges 0/0.6 bar to 0/1000 bar (0/0.6 bar to 0/1600 bar). The robust design with a measuring system that is completely welded to the housing results a shock- and vibration-resistant unit that does not require seals. This keeps the risk of leaks to a minimum and ensures high long-term stability. The pressure gauge features bottom or back bottom process connections G½B – AF 22 (EN 837-1/7.3). Other, customer-specific process connections are also possible. The Bourdon tube pressure gauge for chemical applications is made of stainless steel 304 and tightness-tested with helium; it features laminated safety glass window and a blow-out. The pressure gauge is optionally available with a back flange, a panel mounting bezel, a 3-hole fixing, panel mounting bezel, special scales, electrical contacts and an ATEX version. The Bourdon tube pressure gauge NS 100 (NS 160) is DNV- and GOSSTANDART-certified and suitable for chemical and process engineering applications.
