Phase Technology Online Process Analysers Just Got Even Better

The latest generation of Phase Technology’s 70Xi cold properties online analysers is even easier to use and maintain. You get a precise measurement of freeze, cloud and pour point in jet fuel, diesel and other hydrocarbon products

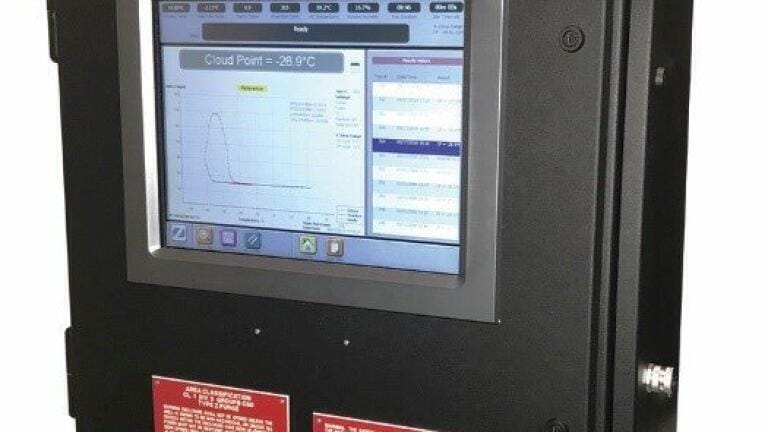

It’s new full-color, touch-sensitive, 15” high resolution screen is easier to read and displays several views of information at the same time. Multitasking capability eliminates need to flip between multiple windows. The analysis cycle time takes only 10 to 15 minutes.

The redesigned solenoid module and new din rail offers easy access and serviceability. Also, the field-replaceable parts (including the cooler) makes it easier and faster to service without the need to re-calibrate.

The 70Xi also offers customisable reporting - test history, plot data and self-diagnostics can be displayed on-screen, printed, or transferred to a computer.

Its powerful cooling system allows measurements the three cold properties in one single analyser at temperatures up to below -80°C (-112°F). Extensive, built-in diagnostic tests; remote diagnostics can be performed via ethernet, serial port or phone line.

The 70 Xi correlates with:

• Pour Point: ASTM D5949, ASTM D97 (IP 15 / ISO 3016) equivalent or better
• Cloud Point: ASTM D5773 (IP 446), ASTM D2500 (IP 219 / ISO 3015) equivalent
• Freeze Point: ASTM D5972 (IP 435), ASTM D2386 (IP 16 / ISO 3013) equivalent

Phase Technology online analyzer systems are ruggedly built for continuous, uninterrupted measurement. Their robust, explosion proof construction means you can rely on them to operate in even the most extreme and hazardous conditions. (Optional flameproof (Ex d) protection online analyser with IECEx or ATEX certification available upon request.)

Including a dedicated process analyser in your refinery’s flow from distillation lets you get quicker test results with better ASTM reproducibility. Online analysers are a smart investment to ensure that quality control is tight at every step of the refining process.

Click here to learn more.
