Discover the Gold at the Bottom of the Barrel

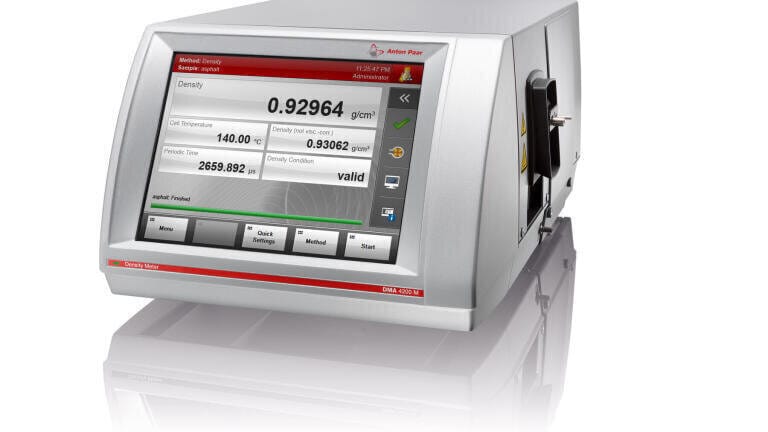

At last there is a density meter which can measure all petroleum samples, including crude oil, intermediate products, asphalt, bitumen, liquefied petroleum gas (LPG) and high-viscosity liquids: the new DMA 4200 M.

Benefits at a glance

• Density measurement of all petroleum samples, including crude oil, intermediate products, asphalt, bitumen, liquefied petroleum gas (LPG) and high-viscosity liquids
• Measurement from -10°C to 200°C
• Chemically resistant to hydrochloric acid and sour gas
• Low solvent volume – quick cleaning
• Easy filling of viscous samples

Only 2 mL of sample is needed and after measurement the measuring cell is quickly cleaned with only a small amount of solvent. Measurement in a temperature range from -10°C up to 200°C even allows density checks on samples which are solid at room temperature. DMA 4200 M automatically calculates the density values for the required reporting temperature using built-in API tables.

Using DMA 4200 M means that tedious, manual and time-intensive measurement with pycnometers or hydrometers is a thing of the past. This instrument extends the renowned DMA M range of density meters from Anton Paar and builds on almost 50 years of experience in density measurement.

The heart of DMA 4200 M is an innovatively designed and precisely engineered U-tube made of Hastelloy. This high-performance material has a much higher chemical resistance to hydrochloric acid and sour gas than stainless steel, ensuring a long life with no risk of breakages or corrosion. As the U-tube is so robust, samples can also be measured under pressures up to 500 bar.

The DMA 4200 M is a must-have tool for laboratories at petroleum refineries as it improves, accelerates and simplifies density measurements for incoming crude oil, for intermediate samples to give quick feedback to the refining process and for QC of samples like asphalt, bitumen and LPG.

For more information contact Anton Paar directly via this contact form.
